Spring Security Introduction

1. Introduction

Much of what we have covered to date has been focused on delivering functional capability. Before we go much further into filling in the backend parts of our application or making deployments, we need to begin factoring in security concerns. Information Security is a practice of protecting information by mitigating risks ^[1] Risks are identified with their impact and appropriate mitigations.

We won’t get into the details of Information Security analysis and making specific trade-offs, but we will cover how we can address the potential mitigations through the use of a framework and how that is performed within Spring Security and Spring Boot.

1.1. Goals

You will learn:

key terms relative to implementing access control and privacy
the flexibility and power of implementing a filter-based processing architecture
the purpose of the core Spring Authentication components
how to enable Spring Security
to identify key aspects of the default Spring Security

1.2. Objectives

At the conclusion of this lecture and related exercises, you will be able to:

define identity, authentication, and authorization and how they can help protect our software system
identify the purpose for and differences between encoding, encryption, and cryptographic hashes
identify the purpose of a filter-based processing architecture
identify the core components within Spring Authentication
identity where the current user authentication is held/located
how to activate default Spring Security configuration
identify and demonstrate the security features of the default Spring Security configuration
step through a series of calls through the Security filter chain

2. Access Control

Access Control is one of the key mitigation factors within a security solution.

Identity: We need to know who the caller is and/or who is the request being made for. When you make a request in everyday life (e.g., make a pizza order) — you commonly have to supply your identity so that your request can be associated with you. There can be many layers of systems/software between the human and the action performed, so identity can be more complex than just a single value — but I will keep the examples to a simple username.
Authentication: We need verification of the requester’s identity. This is commonly something known — e.g., a password, PIN, or generated token. Additional or alternate types of authentication like something someone has (e.g., access to a specific mobile phone number or email account, or assigned token generator) are also becoming more common today and are adding a needed additional level of security to more sensitive information.
Authorization: Once we know and can confirm the identity of the requester, we then need to know what actions they are allowed to perform and information they are allowed to access or manipulate. This can be based on assigned roles (e.g., administrator, user), relative role (e.g., creator, owner, member), or releasability (e.g., access markings).

These access control decisions are largely independent of the business logic and can be delegated to the framework. That makes it much easier to develop and test business logic outside of the security protections and to be able to develop and leverage mature and potentially certified access control solutions.

3. Privacy

Privacy is a general term applied to keeping certain information or interactions secret from others. We use various encoding, encryption, and hash functions in order to achieve these goals.

3.1. Encoding

Encoding converts source information into an alternate form that is safe for communication and/or storage. ^[2] Two primary examples are URL and Base64 encoding of special characters or entire values. Encoding may obfuscate the data, but by itself is not encryption. Anyone knowing the encoding scheme can decode an encoded value and that is its intended purpose.

Example Base64 encoding

$ echo -n jim:password | base64 (1)
amltOnBhc3N3b3Jk
$ echo -n amltOnBhc3N3b3Jk | base64 -D
jim:password

1	`echo -n` echos the supplied string without new line character added - which would pollute the value

3.2. Encryption

Encryption is a technique of encoding "plaintext" information into an enciphered form ("ciphertext") with the intention that only authorized parties — in possession of the encryption/decryption keys — can convert back to plaintext. ^[3] Others not in possession of the keys would be forced to try to break the code thru (hopefully) a significant amount of computation.

There are two primary types of keys — symmetric and asymmetric. For encryption with symmetric keys, the encryptor and decryptor must be in possession of the same/shared key. For encryption with asymmetric keys — there are two keys: public and private. Plaintext encrypted with the shared, public key can only be decrypted with the private key. SSH is an example of using asymmetric encryption.

Asymmetric encryption is more computationally intensive than symmetric

Asymmetric encryption is more computationally intensive than symmetric — so you may find that asymmetric encryption techniques will embed a dynamically generated symmetric key used to encrypt a majority of the payload within a smaller area of the payload that is encrypted with the asymmetric key.

Example AES Symmetric Encryption/Decryption

$ echo -n "jim:password" > /tmp/plaintext.txt
$ openssl enc -aes-256-cbc -salt -in /tmp/plaintext.txt -base64 \(1)
-pass pass:password > /tmp/ciphertext

$ cat /tmp/ciphertext
U2FsdGVkX18mM2yNc337MS5r/iRJKI+roqkSym0zgMc=

$ openssl enc -d -aes-256-cbc -in /tmp/ciphertext -base64 -pass pass:password (2)
jim:password

$ openssl enc -d -aes-256-cbc -in /tmp/ciphertext -base64 -pass pass:password123 (3)
bad decrypt
4611337836:error:06FFF064:digital envelope routines:CRYPTO_internal:bad decrypt

1	encrypting file of plaintext with a symmetric/shared key. Result is base64 encoded.
2	decrypting file of ciphertext with valid symmetric/shared key after being base64 decoded
3	failing to decrypt file of ciphertext with invalid key

3.3. Cryptographic Hash

A Cryptographic Hash is a one-way algorithm that takes a payload of an arbitrary size and computes a value of a known size that is unique to the input payload. The output is deterministic such that multiple, separate invocations can determine if they were working with the same input value — even if the resulting hash is not technically the same. Cryptographic hashes are good for determining whether information has been tampered with or to avoid storing recoverable password values.

Example MD5 Cryptographic Hash without Salt

$ echo -n password | md5
5f4dcc3b5aa765d61d8327deb882cf99 (1)
$ echo -n password | md5
5f4dcc3b5aa765d61d8327deb882cf99 (1)
$ echo -n password123 | md5
482c811da5d5b4bc6d497ffa98491e38 (2)

1	Core hash algorithms produce identical results for same inputs
2	Different value produced for different input

Unlike encryption there is no way to mathematically obtain the original plaintext from the resulting hash. That makes it a great alternative to storing plaintext or encrypted passwords. However, there are still some unwanted vulnerabilities by having the calculated value be the same each time.

By adding some non-private variants to each invocation (called "Salt"), the resulting values can be technically different — making it difficult to use brute force dictionary attacks. The following example uses the Apache htpasswd command to generate a Cryptographic Hash with a Salt value that will be different each time. The first example uses the MD5 algorithm again and the second example uses the Bcrypt algorithm — which is more secure and widely accepted for creating Cryptographic Hashes for passwords.

Example MD5 Cryptographic Hash with Salt

$ htpasswd -bnm jim password
jim:$apr1$ctNOftbV$SZHs/IA3ytOjx0IZEZ1w5. (1)

$ htpasswd -bnm jim password
jim:$apr1$gLU9VlAl$ihDOzr8PdiCRjF3pna2EE1 (1)

$ htpasswd -bnm jim password123
jim:$apr1$9sJN0ggs$xvqrmNXLq0XZWjMSN/WLG.

1	Salt added to help defeat dictionary lookups

Example Bcrypt Cryptographic Hash with Salt

$ htpasswd -bnBC 10 jim password
jim:$2y$10$cBJOzUbDurA32SOSC.AnEuhUW269ACaPM7tDtD9vbrEg14i9GdGaS

$ htpasswd -bnBC 10 jim password
jim:$2y$10$RztUum5dBjKrcgiBNQlTHueqDFd60RByYgQPbugPCjv23V/RzfdVG

$ htpasswd -bnBC 10 jim password123
jim:$2y$10$s0I8X22Z1k2wK43S7dUBjup2VI1WUaJwfzX8Mg2Ng0jBxnjCEA0F2

4. Spring Web

Spring Framework operates on a series of core abstractions and a means to leverage them from different callchains. Most of the components are manually assembled through builders and components/beans are often integrated together through the Spring application context.

For the web specifically, the callchains are implemented through an initial web interface implemented through the hosting or embedded web server. Often the web.xml will define a certain set of filters that add functionality to the request/response flow.

Figure 1. Spring Web Framework Operates thru Flexibly Assembled Filters and Core Services

5. No Security

We know by now that we can exercise the Spring Application Filter Chain by implementing and calling a controller class. I have implemented a simple example class that I will be using throughout this lecture. At this point in time — no security has been enabled.

5.1. Sample GET

The example controller has two example GET calls that are functionally identical at this point because we have no security enabled. The following is registered to the /api/anonymous/hello URI and the other to /api/authn/hello.

Example GET

@RequestMapping(path="/api/anonymous/hello",
    method= RequestMethod.GET)
public String getHello(@RequestParam(name = "name", defaultValue = "you") String name) {
    return "hello, " + name;
}

We can call the endpoint using the following curl or equivalent browser call.

Calling Example GET

$ curl -v -X GET "http://localhost:8080/api/anonymous/hello?name=jim"
> GET /api/anonymous/hello?name=jim HTTP/1.1
< HTTP/1.1 200
< Content-Length: 10
<
hello, jim

5.2. Sample POST

The example controller has three example POST calls that are functionally identical at this point because we have no security or other policies enabled. The following is registered to the /api/anonymous/hello URI. The other two are mapped to the /api/authn/hello and /api/alt/hello URIs. ^[4].

Example POST

@RequestMapping(path="/api/anonymous/hello",
        method = RequestMethod.POST,
        consumes = MediaType.TEXT_PLAIN_VALUE,
        produces = MediaType.TEXT_PLAIN_VALUE)
public String postHello(@RequestBody String name) {
    return "hello, " + name;
}

We can call the endpoint using the following curl command.

Calling Example POST

$ curl -v -X POST "http://localhost:8080/api/anonymous/hello" \
-H "Content-Type: text/plain" -d "jim"
> POST /api/anonymous/hello HTTP/1.1
< HTTP/1.1 200
< Content-Length: 10
<
hello, jim

5.3. Sample Static Content

I have not mentioned it before now — but not everything served up by the application has to be live content provided through a controller. We can place static resources in the src/main/resources/static folder and have that packaged up and served through URIs relative to the root.

static resource locations

Spring Boot will serve up static content found in /static, /public, /resources, or /META-INF/resources/ of the classpath.

src/main/resources/
`-- static
    `-- content
        `-- hello_static.txt

Anything placed below src/main/resources will be made available in the classpath within the JAR via target/classes.

target/classes/
`-- static  <== classpath:/static at runtime
    `-- content  <== /content URI at runtime
        `-- hello_static.txt

This would be a common thing to do for css files, images, and other supporting web content. The following is a text file in our sample application.

src/main/resources/static/content/hello_static.txt

Hello, static file

The following is an example GET of that static resource file.

$ curl -v -X GET "http://localhost:8080/content/hello_static.txt"
> GET /content/hello_static.txt HTTP/1.1
< HTTP/1.1 200
< Content-Length: 19
<
Hello, static file

6. Spring Security

The Spring Security framework is integrated into the web callchain using filters that form an internal Security Filter Chain.

We will look at the Security Filter Chain in more detail shortly. At this point — just know that the framework is a flexible, filter-based framework where many different authentication schemes can be enabled. Lets take a look first at the core services used by the Security Filter Chain.

Figure 2. Spring Security Implemented as Extension of Application Filter Chain

6.1. Spring Core Authentication Framework

Once we enable Spring Security — a set of core authentication services are instantiated and made available to the Security Filter Chain. The key players are a set of interfaces with the following roles.

Figure 3. Spring Security Core Authentication Framework

Authentication: provides both an authentication request and result abstraction. All the key properties (principal, credentials, details) are defined as java.lang.Object to allow just about any identity and authentication abstraction be represented. For example, an Authentication request has a principal set to the username String and an Authentication response has the principal set to UserDetails containing the username and other account information.
AuthenticationManager: provides a front door to authentication requests that may be satisfied using one or more AuthenticationProvider
AuthenticationProvider: a specific authenticator with access to UserDetails to complete the authentication. Authentication requests are of a specific type. If this provider supports the type and can verify the identity claim of the caller — an Authentication result with additional user details is returned.
UserDetailsService: a lookup strategy used by AuthenticationProvider to obtain UserDetails by username. There are a few configurable implementations provided by Spring (e.g., JDBC) but we are encouraged to create our own implementations if we have a credentials repository that was not addressed.
UserDetails: an interface that represents the minimal needed information for a user. This will be made part of the Authentication response in the principal property.

6.2. SecurityContext

The authentication is maintained inside of a SecurityContext that can be manipulated over time. The current state of authentication is located through static methods of the SecurityContextHolder class. Although there are multiple strategies for maintaining the current SecurityContext with Authentication — the most common is ThreadLocal.

Figure 4. Current SecurityContext with Authentication accessible through SecurityContextHolder

7. Spring Boot Security AutoConfiguration

As with most Spring Boot libraries — we have to do very little to get started. Most of what you were shown above is instantiated with a single additional dependency on the spring-boot-starter-security artifact.

7.1. Maven Dependency

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
</dependency>

This artifact triggers three (3) AutoConfiguration classes in the spring-boot-autoconfiguration artifact.

For Spring Boot < 2.7, the auto-configuration classes will be named in META-INF/spring.factories:

# org.springframework-boot:spring-boot-autoconfigure/META-INF/spring.factories
...
org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfiguration,\
org.springframework.boot.autoconfigure.security.servlet.UserDetailsServiceAutoConfiguration,\
org.springframework.boot.autoconfigure.security.servlet.SecurityFilterAutoConfiguration,\

For Spring Boot >= 2.7, the auto-configuration classes will be named in META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports .Spring Boot Starter Security (>= 2.7)

# org.springframework-boot:spring-boot-autoconfigure/META-INF/spring/org.springframework.boot.autoconfigure.AutoConfiguration.imports

org.springframework.boot.autoconfigure.security.servlet.SecurityAutoConfiguration
org.springframework.boot.autoconfigure.security.servlet.UserDetailsServiceAutoConfiguration
org.springframework.boot.autoconfigure.security.servlet.SecurityFilterAutoConfiguration

The details of this may not be that important except to understand how the default behavior was assembled and how future customizations override this behavior.

7.2. SecurityAutoConfiguration

The SecurityAutoConfiguration imports two @Configuration classes that conditionally wire up the security framework discussed with default implementations.

SpringBootWebSecurityConfiguration makes sure there is at least a default SecurityFilterChain (more on that later) which

requires all URIs be authenticated
activates FORM and BASIC authentication

enables CSRF and other security protections

@Bean
@Order(SecurityProperties.BASIC_AUTH_ORDER) //very low priority
SecurityFilterChain defaultSecurityFilterChain(HttpSecurity http) throws Exception {
    http.authorizeRequests().anyRequest().authenticated();
    http.formLogin();
    http.httpBasic();
    return http.build();
}

WebSecurityEnablerConfiguration activates all security components by supplying the @EnableWebSecurity annotation when the security classes are present in the classpath.

7.3. WebSecurityConfiguration

WebSecurityConfiguration gathers all the SecurityFilterChain beans, obtains filters for each, and forms the runtime FilterChains.

7.4. UserDetailsServiceAutoConfiguration

The UserDetailsServiceAutoConfiguration simply defines an in-memory UserDetailsService if one is not yet present. This is one of the provided implementations mentioned earlier — but still just a demonstration toy. The UserDetailsService is populated with one user:

name: user, unless defined
password: generated, unless defined
Example Output from Generated Password
```
Using generated security password: ff40aeec-44c2-495a-bbbf-3e0751568de3
```

Overrides can be supplied in properties

Example Default user/password Override

spring.security.user.name: user
spring.security.user.password: password

7.5. SecurityFilterAutoConfiguration

The SecurityFilterAutoConfiguration establishes the springSecurityFilterChain filter chain, implemented as a DelegatingFilterProxy. The delegate of this proxy is supplied by the details of the SecurityAutoConfiguration.

8. Default FilterChain

When we activated Spring security we added a level of filters that were added to the Application Filter Chain. The first was a DelegatingFilterProxy that lazily instantiated the filter using a delegate obtained from the Spring application context. This delegate ends up being a FilterChainProxy which has a prioritized list of SecurityFilterChain (implemented using DefaultSecurityFilterChain). Each SecurityFilterChain has a requestMatcher and a set of zero or more Filters. Zero filters essentially bypasses security for a particular URI pattern.

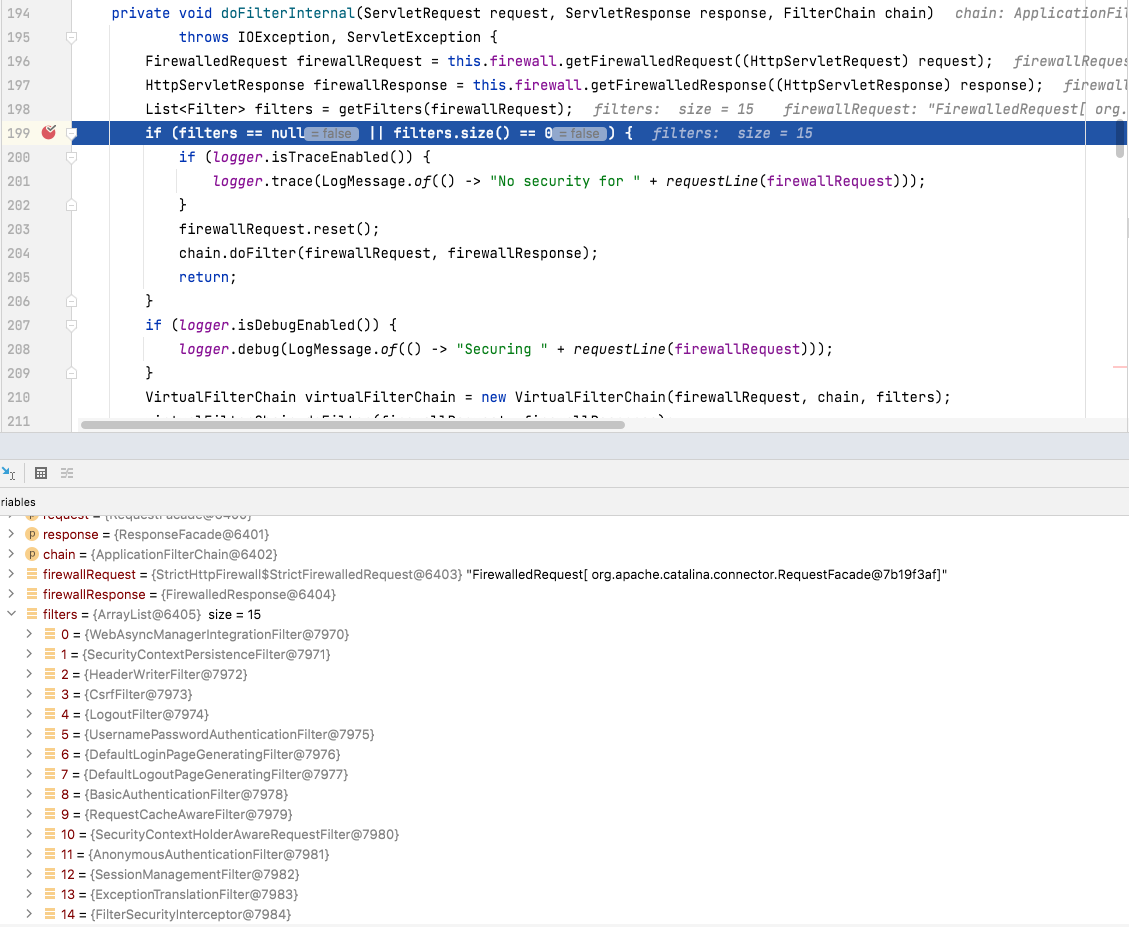

Figure 5. Default Security Filter Chain

9. Default Secured Application

With all that said — and all we really did was add an artifact dependency to the project — the following shows where the Auto-Configuration left our application.

9.1. Form Authentication Activated

Form Authentication has been activated and we are now stopped from accessing all URLs without first entering a valid username and password. Remember, the default username is user and the default password was output to the console unless we supplied one in properties. The following shows the result of a redirect when attempting to access any URL in the application.

Figure 6. Example Default Form Login Activated

We entered http://localhost:8080/api/anonymous/hello?name=jim
Application saw there was no authentication for the session and redirected to /login page
Login URL, html, and CSS supplied by spring-boot-starter-security

If we call the endpoint from curl, without indicating we can visit an HTML page, we get flatly rejected with a 401/UNAUTHORIZED. The response does inform us that BASIC Authentication is available.

Example 401/Unauthorized from Default Secured Application

$ curl -v http://localhost:8080/authn/hello?name=jim
> GET /authn/hello?name=jim HTTP/1.1
< HTTP/1.1 401
< Set-Cookie: JSESSIONID=D124368C884557286BF59F70888C0D39; Path=/; HttpOnly
< WWW-Authenticate: Basic realm="Realm" (1)
{"timestamp":"2020-07-01T23:32:39.909+00:00","status":401,
"error":"Unauthorized","message":"Unauthorized","path":"/authn/hello"}

1	`WWW-Authenticate` header indicates that BASIC Authentication is available

If we add an Accept header to the curl request with text/html, we get a 302/REDIRECT to the login page the browser automatically took us to.

Example 302/Redirect to FORM Login Page

$ curl -v http://localhost:8080/authn/hello?name=jim \
-H "Accept: text/plain,text/html" (1)
> GET /authn/hello?name=jim HTTP/1.1
> Accept: text/plain, text/html
< HTTP/1.1 302
< Set-Cookie: JSESSIONID=E132523FE23FA8D18B94E3D55820DF13; Path=/; HttpOnly
< Location: http://localhost:8080/login
< Content-Length: 0

1	adding an Accept header accepting text initiates a redirect to login form

The login (URI /login) and logout (URI /logout) forms are supplied as defaults. If we use the returned JSESSIONID when accessing and successfully completing the login form — we will continue on to our originally requested URL.

Since we are targeting APIs — we will be disabling that very soon and relying on more stateless authentication mechanisms.

9.2. Basic Authentication Activated

BASIC authentication is also activated by default. This is usable by our API out of the gate, so we will use this a bit more in examples. The following shows an example BASIC encoding of the username:password values in a Base64 string and then supplying the result of that encoding in an Authorization header prefixed with the work "BASIC ".

Example Successful Basic Authentication

$ echo -n user:ff40aeec-44c2-495a-bbbf-3e0751568de3 | base64
dXNlcjpmZjQwYWVlYy00NGMyLTQ5NWEtYmJiZi0zZTA3NTE1NjhkZTM=

$ curl -v -X GET http://localhost:8080/api/anonymous/hello?name=jim \
-H "Authorization: BASIC dXNlcjpmZjQwYWVlYy00NGMyLTQ5NWEtYmJiZi0zZTA3NTE1NjhkZTM="
> GET /api/anonymous/hello?name=jim HTTP/1.1
> Authorization: BASIC dXNlcjpmZjQwYWVlYy00NGMyLTQ5NWEtYmJiZi0zZTA3NTE1NjhkZTM=
>
< HTTP/1.1 200 (1)
< Content-Length: 10
hello, jim

1	request with successful BASIC authentication gives us the results of intended URL

Base64 web sites available if command-line tool not available

I am using a command-line tool for easy demonstration and privacy. There are various websites that will perform the encode/decode for you as well. Obviously, using a public website for real usernames and passwords would be a bad idea.

curl can Automatically Supply Authorization Header

You can avoid the manual step of base64 encoding the username:password and manually supplying the Authorization header with curl by using the plaintext -u username:password option.

curl -v -X GET http://localhost:8080/api/anonymous/hello?name=jim -u user:ff40aeec-44c2-495a-bbbf-3e0751568de3
...
> GET /api/anonymous/hello?name=jim HTTP/1.1
> Authorization: BASIC dXNlcjpmZjQwYWVlYy00NGMyLTQ5NWEtYmJiZi0zZTA3NTE1NjhkZTM=
...

9.3. Authentication Required Activated

If we do not supply the Authorization header or do not supply a valid value, we get a 401/UNAUTHORIZED status response back from the interface telling us our credentials are either invalid (did not match username:password) or were not provided.

Example Unauthorized Access

$ echo -n user:badpassword | base64 (2)
dXNlcjpiYWRwYXNzd29yZA==

$ curl -v -X GET http://localhost:8080/api/anonymous/hello?name=jim -u user:badpassword  (1)
> GET /api/anonymous/hello?name=jim HTTP/1.1
> Authorization: BASIC dXNlcjpiYWRwYXNzd29yZA== (2)
>
< HTTP/1.1 401
< WWW-Authenticate: Basic realm="Realm"
< Set-Cookie: JSESSIONID=32B6CDB8E899A82A1B7D55BC88CA5CBE; Path=/; HttpOnly
< WWW-Authenticate: Basic realm="Realm"
< Content-Length: 0

1	bad `username:password` supplied
2	demonstrating source of Authorization header

9.4. Username/Password Can be Supplied

To make things more consistent during this stage of our learning, we can manually assign a username and password using properties.

src/main/resources/application.properties

spring.security.user.name: user
spring.security.user.password: password

Example Authentication with Supplied Username/Password

$ curl -v -X GET "http://localhost:8080/api/authn/hello?name=jim" -u user:password
> GET /api/authn/hello?name=jim HTTP/1.1
> Authorization: BASIC dXNlcjpwYXNzd29yZA==
< HTTP/1.1 200
< Set-Cookie: JSESSIONID=7C5045AE82C58F0E6E7E76961E0AFF57; Path=/; HttpOnly
< Content-Length: 10
hello, jim

9.5. CSRF Protection Activated

The default Security Filter chain contains CSRF protections — which is a defense mechanism developed to prevent alternate site from providing the client browser a page that performs an unsafe (POST, PUT, or DELETE) call to an alternate site the client has as established session with. The server makes a CSRF token available to us using a GET and will be expecting that value on the next POST, PUT, or DELETE.

Example CSRF POST Rejection

$ curl -v -X POST "http://localhost:8080/api/authn/hello" \
-u user:password -H "Content-Type: text/plain" -d "jim"
> POST /api/authn/hello HTTP/1.1
> Authorization: BASIC dXNlcjpwYXNzd29yZA==
> Content-Type: text/plain
> Content-Length: 3
< HTTP/1.1 401
< Set-Cookie: JSESSIONID=3EEB3625749482AD9E44A3B7E25A0EE4; Path=/; HttpOnly
< WWW-Authenticate: Basic realm="Realm"
< Content-Length: 0

9.6. Other Headers

Spring has, by default, generated additional headers to help with client interactions that primarily have to do with common security issues.

Example Other Headers Supplied By Spring

$ curl -v http://localhost:8080/api/anonymous/hello?name=jim -u user:password
> GET /api/anonymous/hello?name=jim HTTP/1.1
> Authorization: BASIC dXNlcjpwYXNzd29yZA==
>
< HTTP/1.1 200
< Set-Cookie: JSESSIONID=EC5EB9D1182F8AC77E290D12AD3BF369; Path=/; HttpOnly
< X-Content-Type-Options: nosniff
< X-XSS-Protection: 1; mode=block
< Cache-Control: no-cache, no-store, max-age=0, must-revalidate
< Pragma: no-cache
< Expires: 0
< X-Frame-Options: DENY
< Content-Type: text/plain;charset=UTF-8
< Content-Length: 10
< Date: Thu, 02 Jul 2020 10:45:32 GMT
<
hello, jim

Set-Cookie: a command header to set a small amount of information in the browser to be returned to the server on follow-on calls. ^[5] This permits the server to keep track of a user session so that a login state can be retained on follow-on calls.
X-Content-Type-Options: informs the browser that supplied Content-Type header responses have been deliberately assigned ^[6] and to avoid Mime Sniffing — a problem caused by servers serving uploaded content meant to masquerade as alternate MIME types.
X-XSS-Protection: a header that informs the browser what to do in the event of a Cross-Site Scripting attack is detected. There seems to be a lot of skepticism of its value for certain browsers ^[7]
Cache-Control: a header that informs the client how the data may be cached. ^[8] This value can be set by the controller response but is set to a non-cache state by default here.
Pragma: an HTTP/1.0 header that has been replaced by Cache-Control in HTTP 1.1. ^[9]
Expires: a header that contains the date/time when the data should be considered stale and should be re-validated with the server. ^[10]
X-Frame-Options: informs the browser whether the contents of the page can be displayed in a frame. ^[10] This helps prevent site content from being hijacked in an unauthorized manner. This will not be pertinent to our API responses.

10. Default FilterChainProxy Bean

The above behavior was put in place by the default Security Auto-Configuration — which is primarily placed within an instance of the FilterChainProxy class ^[11]. This makes the FilterChainProxy class a convenient place for a breakpoint when debugging security flows.

The FilterChainProxy is configured with a set of firewall rules that address such things as bad URI expressions that have been known to hurt web applications and zero or more SecurityFilterChains arranged in priority order (first match wins).

The default configuration has a single SecurityFilterChain that matches all URIs, requires authentication, and also adds the other aspects we have seen so far.

Figure 7. Spring FilterChainProxy Configuration

Below is a list of filters put in place by the default configuration. This — by far — is not all the available filters. I wanted to at least provide a description of the default ones before we start looking to selectively configure the chain.

It is a pretty dry topic to just list them off. It would be best if you had the svc/svc-security/noauthn-security-example example loaded in an IDE with:

the pom updated to include the spring-boot-starter-security

Starter Activates Default Security Policies

<dependency>
    <groupId>org.springframework.boot</groupId>
    <artifactId>spring-boot-starter-security</artifactId>
</dependency>

a breakpoint set on "FilterChainProxy.doFilterInternal()" to clearly display the list of filters that will be used for the request.
another breakpoint set on "FilterChainProxy.VirtualFilterChain.doFilter()" to pause in between each filter.
a browser open with network logging active and ready to navigate to http://localhost:8080/api/authn/hello?name=jim

Whenever we make a request in the default state - we will most likely visit the following filters.

WebAsyncManagerIntegrationFilter: Establishes an association between the SecurityContext (where the current caller’s credentials are held) and potential async responses making use of the Callable feature. Caller identity is normally unique to a thread and obtained through a ThreadLocal. Anything completing in an alternate thread must have a strategy to resolve the identity of this user by some other means.
SecurityContextPersistenceFilter: Manages SecurityContext in between calls. If appropriate — stores the SecurityContext and clears it from the call on exit. If present — restores the SecurityContext on following calls.
HeaderWriterFilter: Issues standard headers (shown earlier) that can normally be set to a fixed value and optionally overridden by controller responses.
CsrfFilter: Checks all non-safe (POST, PUT, and DELETE) calls for a special Cross-Site Request Forgery (CSRF) token either in the payload or header that matches what is expected for the session. This attempts to make sure that anything that is modified on this site — came from this site and not a malicious source. This does nothing for all safe (GET, HEAD, OPTIONS, and TRACE)
LogoutFilter: Looks for calls to logout URI. If matches, it ends the login for all types of sessions, and terminates the chain.
UsernamePasswordAuthenticationFilter: This instance of this filter is put in place to obtain the username and password submitted by the login page. Therefore anything that is not POST /login is ignored. The actual POST /login requests have their username and password extracted, authenticated
DefaultLoginPageGeneratingFilter: Handles requests for the login URI (POST /login). This produces the login page, terminates the chain, and returns to caller.
DefaultLogoutPageGeneratingFilter: Handles requests for the logout URI (GET /logout). This produces the logout page, terminates the chain, and returns to the caller.
BasicAuthenticationFilter: Looks for BASIC Authentication header credentials, performs authentication, and continues the flow if successful or if no credentials where present. If credentials were not successful it calls an authentication entry point that handles a proper response for BASIC Authentication and ends the flow.
RequestCacheAwareFilter: This retrieves an original request that was redirected to a login page and continues it on that path.
SecurityContextHolderAwareRequestFilter: Wraps the HttpServletRequest so that the security-related calls (isAuthenticated(), authenticate(), login(), logout()) are resolved using the Spring security context.
AnonymousAuthenticationFilter: Assigns anonymous use to security context if no user is identified
SessionManagementFilter: Performs any required initialization and security checks in order to setup the current session
ExceptionTranslationFilter: Attempts to augment any thrown AccessDeniedException and AuthenticationException with details related to the denial. It does not add any extra value if those exceptions are not thrown. This will save the current request (for access by RequestCacheAwareFilter) and commence an authentication for AccessDeniedExceptions if the current user is anonymous. The saved current request will allow the subsequent login to complete with a resumption of the original target. If FORM Authentication is active — the commencement will result in a 302/REDIRECT to the /login URI.
FilterSecurityInterceptor: Applies the authenticated user against access constraints. It throws an AccessDeniedException if denied, which is caught by the ExceptionTranslationFilter.

This is also where the security filter chain hands control over to the application filter chain where the endpoint will get invoked.

11. Summary

In this module we learned:

the importance of identity, authentication, and authorization within security
the purpose for and differences between encoding, encryption, and cryptographic hashes
purpose of a filter-based processing architecture
the identity of the core components within Spring Authentication
where the current user authentication is held/located
how to activate default Spring Security configuration
the security features of the default Spring Security configuration
to step through a series of calls through the Security filter chain for the ability to debug future access problems
